MGB Bike Rack

Felix Wong's avatar
by |

As an avid cyclist and owner of a diminutive 1969 MGB roadster, I was frequently faced with the problem of transporting my race bike to and from the ultramarathon cycling events I partcipated in. My initial solution to the problem was to place my bike behind the MGB’s two front seats. However, this entailed the removal of its front and rear wheels, chain, and derailleur–a very time-consuming practice. A better solution was needed.

Typical bicycle carriers on the market either attached to a vehicle’s roof or strapped onto the car’s trunklid. Since my car is a convertible, the former type was not an option. I also had qualms about a bulky bicycle carrier resting on the shiny paint of my classic automobile. Hence, this prototype luggage rack-mounted bicycle carrier was born.

This MGB bike rack was actually my ME103 (“Design & Manufacturing”) project at Stanford University the winter quarter of 1996. It is designed for my road bike but I have used it with my mountain bike as well. I think I have gotten about 6000 miles of use out of it so far.

Objectives & Requirements

To design and manufacture a bicycle rack that met the following criteria:

  • Quick set-up time
  • Does not touch vehicle’s paint
  • Stable in crosswinds and heavy cornering
  • Lockable
  • Compact and easily stored
  • Under $100 in parts and materials

The Final Product

Setup is a six-step process that takes two or three minutes:

  1. Unfold bicycle carrier
  2. Clamp onto luggage rack
  3. Attach single bolt through the two channel-section members using two 7/16″ wrenches
  4. Take off front wheel of bicycle
  5. Attach and lock bicycle fork to the for mount’s lockable Cyclox skewer. The rear wheel of bicycle will be resting in the rear channel-section member.
  6. Securing bungee cords from bicycle seat post to MGB luggage rack to provide additional stability in cornering and strong crosswinds

The advantages of the bicycle carrier are as follows:

  • Extremely lightweight: under 5 pounds
  • Foldable; very compact
  • One-bolt design minimizes setup time
  • Total cost: $58 ($33 for 6 lbs. of raw aluminum and $25 for the Cyclox locking skewer)
  • Attaches to the luggage rack, safely away from the car’s paint
The bike rack, folded.
The bike rack, folded.
Front view of the bike rack.
Front view of the bike rack.

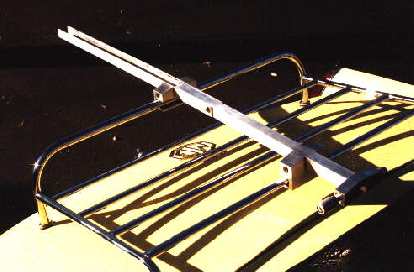

My custom bike rack mounted on the luggage rack of my 1969 MGB.
My custom bike rack mounted on the luggage rack of my 1969 MGB.

Engineering Drawings

  • Here are some basic drawings (PDF, 43 KB) I whipped up in college circa 1996, before I became a Professional Engineer. Some dimensions may be missing but most can be inferred.
  • A more professional assembly drawing (PDF, 404 KB) which I did more recently in SolidWorks.

It Worked With Mountain Bikes Too

The U-channel I selected was wide enough for a road bike tire, but not for a mountain bike one.

The bicycle carrier still worked with MTBs, however. Instead of sitting in the U-channel, the rear MTB tire would sit on it.

Before the ride I stopped by a gas station to over-inflate my mountain bike's tires to 65 psi. I was hoping this would make "The Tank" ride a tad faster than a slug.
Before the ride I stopped by a gas station to over-inflate my mountain bike's tires to 65 psi. I was hoping this would make "The Tank" ride a tad faster than a slug.

For security, I wrapped a velcro strap around the MTB rim and bicycle carrier, where the tire sat on the U-channel section.

Goldie--the yellow 1969 MGB--and I attended the 2002 Palo Alto British Car Meet, albeit across the street in the Stanford parking lot, due to doing a timed hill climb up Old La Honda Rd beforehand.
Goldie--the yellow 1969 MGB--and I attended the 2002 Palo Alto British Car Meet, albeit across the street in the Stanford parking lot, due to doing a timed hill climb up Old La Honda Rd beforehand.
